AEWIN’s Intel Xeon 6 Platforms Powering Next-Generation Networking, Storage, and Edge Computing

Introduction
Intel Xeon 6 is the most advanced server-grade processor built on Intel 3 manufacturing architecture. Taking advantage of its performance, efficiency, and rich I/Os, AEWIN designed multiple platforms based on Intel Xeon 6 CPUs to address diverse applications including Networking, Storage, and Edge Computing. Various systems ranging from performance network appliances to scalable storage servers and versatile general-purpose servers are now ready for testing or deployment.

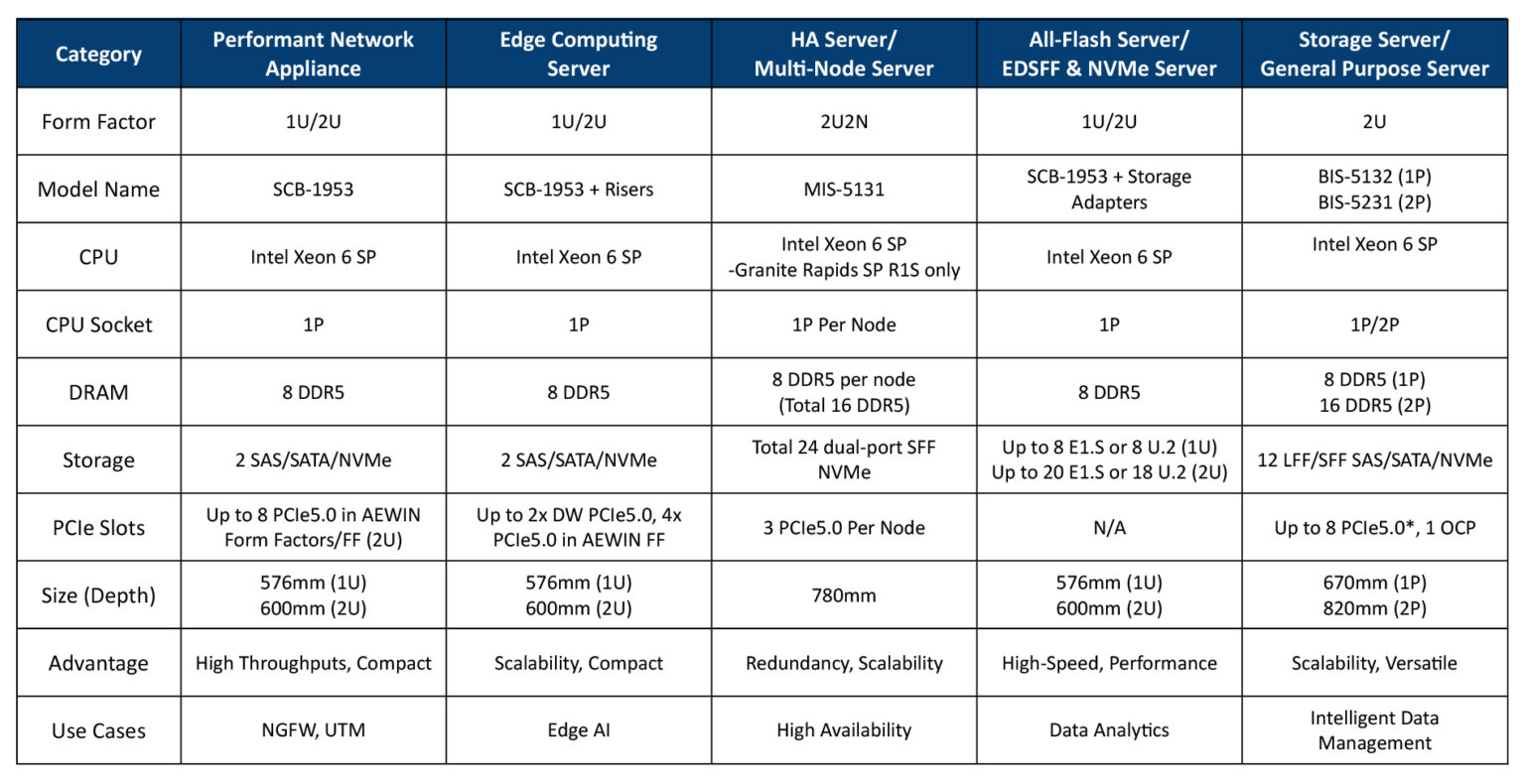

AEWIN Intel Xeon 6 Product Portfolio
AEWIN has developed a broad spectrum of network appliances and servers optimized for specific applications and performance goals. These systems are engineered to deliver high performance and reliability across a wide range of deployment scenarios.

* Only the BIS-5231 SKU configured with 12 SAS/SATA drives supports eight PCIe 5.0 slots plus one OCP slot, while the other SKUs provide alternative expansion combinations.

• Performant Network Appliance
  Leveraging years of experience in high-performance network appliance design, AEWIN introduces the flagship model SCB-1953 series which delivers advanced performance and scalability with a single Intel Xeon 6 processor. It not only provides strong computing capability but also offers up to eight PCIe Gen5 slots to support high throughput NICs such as AEWIN self-design 200Gb/s NICs (NFV101 and NFU201) for data-intensive applications. Despite its high expandability, the system maintains a short-depth chassis that simplifies installation and allows flexible deployment across diverse environments.

• Edge Computing Server
  To host cutting-edge solutions, the computing system requires excellent reliability alongside the support of accelerators such as GPU/FPGA/DPU to accomplish the heavy workloads. AEWIN Edge Computing Servers are designed for edge readiness with features including short-depth chassis, front access design, multiple expansion slots for dual-width accelerators. These capabilities empower Edge AI workloads with computing density and deployment flexibility. Additionally, the versatile expansion architecture supports high-throughput NICs to process massive data volumes at the edge for various kinds of innovative use cases.

• HA Server/Multi-Node Server
  Designed for mission-critical workloads, AEWIN’s high-availability 2U2N storage servers apply Intel Xeon 6 Processor codenamed Granite Rapids-SP R1S to leverage its rich I/O resources including 136 PCIe Gen5 lanes. By integrating 24 dual-port NVMe drives with PCIe Gen5 NTB (Non-Transparent Bridge) and built-in BMC monitoring, this multi-node server enables minimal downtime and optimized TCO. In addition, there are three PCIe Gen5 slots for NICs or accelerators. These capabilities make AEWIN’s HA solution a reliable foundation for enterprise data management and high-availability storage.

• All-Flash Server/EDSFF & NVMe Server
  Built upon AEWIN versatile network appliances, the SCB-1953 series systems can incorporate storage adapter cards to support high-speed EDSFF E1.S and NVMe U.2 drive bays. These all-flash systems feature exceptional storage performance and can be efficiently tailored to specific requirements using AEWIN’s existing Intel Xeon 6-based models. With a broad selection of AEWIN expansion cards including storage adapter cards and NICs, the SCB-1953 provides high-speed, low-latency computing with outstanding flexibility for future storage-centric upgrades.

• Storage Server/General Purpose Server
  AEWIN’s general-purpose storage servers powered by Intel Xeon 6 processors are available in single and dual CPU configurations. Featuring 12 SAS/SATA/NVMe drive bays, the BIS-5132 and BIS-5231 powered by Intel Granite Rapids SP processors support up to 8 PCIe slots for GPU accelerators and high-throughput NICs. Configuration options may vary by CPU SKU and storage selection which enables excellent flexibility to meet diverse customer requirements. These platforms are ideal for data-intensive workloads such as intelligent threat detection and response solutions.

Summary
AEWIN offers a comprehensive portfolio of Intel Xeon 6-based platforms across both network appliances and servers. From intelligent cybersecurity, backup and recovery to high-speed all-flash storage and high-availability infrastructure, these systems support a broad spectrum of enterprise workloads. AEWIN continues to deliver tailored network appliances and servers with high performance, reliability, and scalability that enterprises need to excel in today’s data-driven world.
