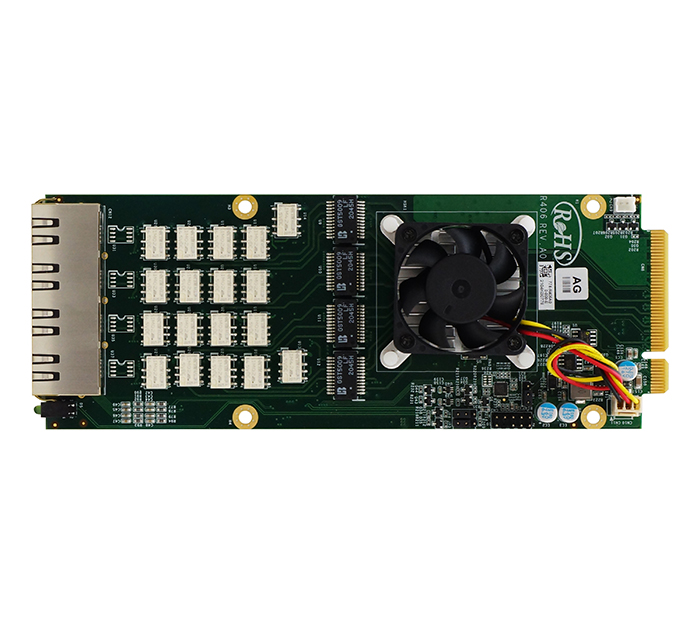

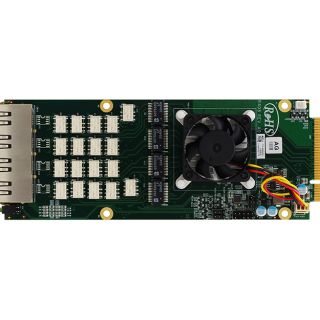

AEWIN R406 网路扩展模组基于久负盛名的 Intel® I350-AM4 晶片组，具备 4 个 1GbE RJ45 埠。提供 2 对旁路埠以满足不同的网路需求。启用 SR-IOV 功能以提供虚拟机的 DMA 存取。
Platform
Form Factor
AEWIN Expansion Module
LAN Controller
1x Intel® I350-AM4
LAN Switch
-
Features
VMDq, SR-IOV
Ethernet Port
4x 1GbE RJ45 Ports
Bypass
2 Pairs Gen 3 Bypass(Optional)
Bus Type
PCIe Gen 2 x8
Mechanical
Dimension(W x D x H):74 x 194 x 29 mm
Weight(with tray): 328g
Weight(without tray): 138g
Weight(with tray): 328g
Weight(without tray): 138g
Environmental
Operating Environment
Temperature: 0-45°C(32-113°F)
Humidity: 20-90% RH
Humidity: 20-90% RH
Storage Environment
Temperature: 0 -70°C(14-158°F)
Humidity: 5-95% RH @ 55°C
Humidity: 5-95% RH @ 55°C
OS Support
Windows, Linux, FreeBSD
Order Information
R406A : 4x 1GbE RJ45 Copper, 2 Pairs LAN Bypass, Ports Sequence Right to Left
R406AL : 4x 1GbE RJ45 Copper, 2 Pairs LAN Bypass, Ports Sequence Left to Right
R406B : 4x 1GbE RJ45 Copper, Ports Sequence Right to Left
R406BL : 4x 1GbE RJ45 Copper, Ports Sequence Left to Right
R406AL : 4x 1GbE RJ45 Copper, 2 Pairs LAN Bypass, Ports Sequence Left to Right
R406B : 4x 1GbE RJ45 Copper, Ports Sequence Right to Left
R406BL : 4x 1GbE RJ45 Copper, Ports Sequence Left to Right
