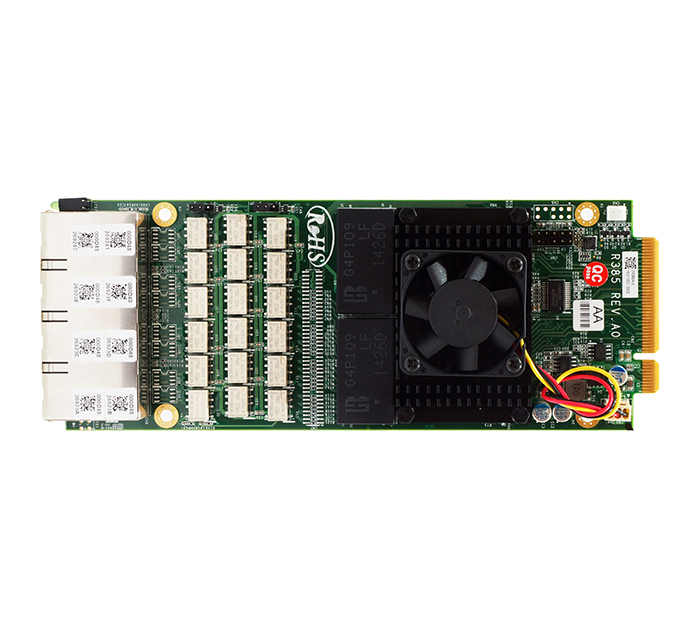

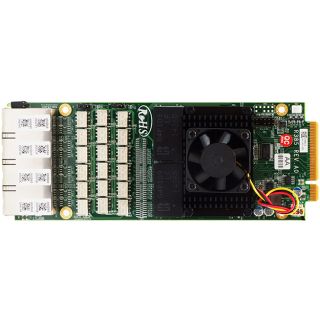

AEWIN R385 网路扩展模组基于久负盛名的 Intel® I350-AM4 晶片组，拥有 8 个 1GbE RJ45 埠，透过 2 个 I350 晶片提供支持。提供 2 对旁路埠以满足不同的网路需求。启用 SR-IOV 功能以提供 DMA 存取。
平台
形式因素
AEWIN Expansion Module
特徵
VMDq, SR-IOV
以太网端口
8x 1GbE RJ45 Ports
巴士类型
PCIe Gen 2 x8
Platform
LAN 控制器
2x Intel® I350-AM4
LAN 交换机
-
Bypass
2 Pairs Gen 3 Bypass
Mechanical
Dimension(W x D x H):74 x 194 x 29 mm
Weight(with tray): 420g
Weight(without tray): 230g
Weight(with tray): 420g
Weight(without tray): 230g
环境
运营环境
Temperature: 0-45°C(32-113°F)
Humidity: 20-90% RH
Humidity: 20-90% RH
储存环境
Temperature: 0 -70°C(14-158°F)
Humidity: 5-95% RH @ 55°C
Humidity: 5-95% RH @ 55°C
OS 支援
Windows, Linux, FreeBSD
订单资讯
R385B : 2x Intel® I350-AM4, 8x 1GbE RJ45 Copper, 2 Pairs LAN Bypass, Ports Sequence Right to Left
R385C : 2x Intel® I350-AM4, 8x 1GbE RJ45 Copper, Ports Sequence Right to Left
R385CL : 2x Intel® I350-AM4, 8x 1GbE RJ45 Copper, Ports Sequence Left to Right
R385C : 2x Intel® I350-AM4, 8x 1GbE RJ45 Copper, Ports Sequence Right to Left
R385CL : 2x Intel® I350-AM4, 8x 1GbE RJ45 Copper, Ports Sequence Left to Right
