Entry Network System
SCB-6909
产品特色
Compact Fanless Network System
Ideal Noiseless System for Silence environments Use
Intel Celeron N3350 and Atom x5-E3930 (Apllo Lake)
DDR3L 1866MHz memory, max support 2GB Max 4 RJ45 GbE ports
eMMC flash, support up to 64GB (default 8GB)
Expansive I/O with two USB 2.0, one mini-PCIe socket and one Console port
Ideal Noiseless System for Silence environments Use
Intel Celeron N3350 and Atom x5-E3930 (Apllo Lake)
DDR3L 1866MHz memory, max support 2GB Max 4 RJ45 GbE ports
eMMC flash, support up to 64GB (default 8GB)
Expansive I/O with two USB 2.0, one mini-PCIe socket and one Console port

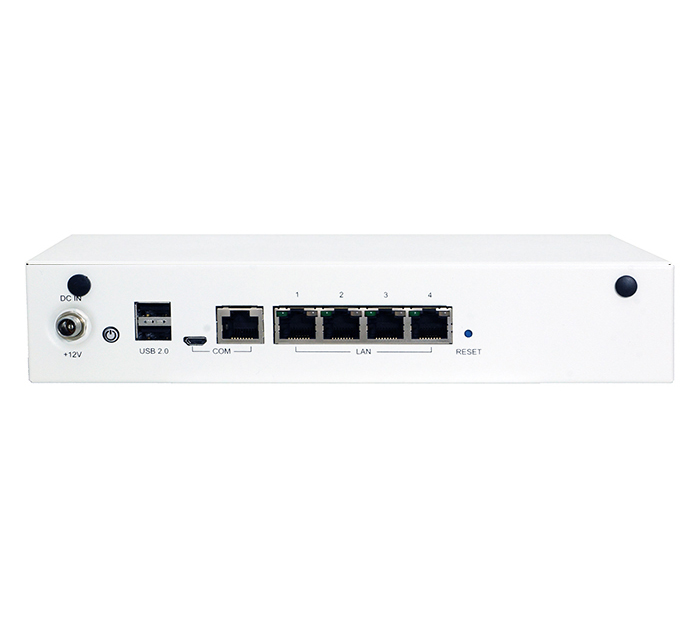

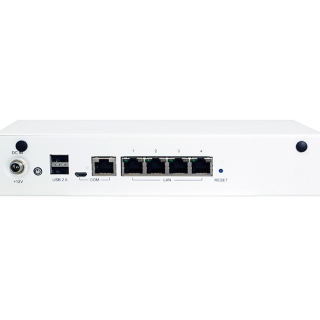

SCB-6909是一款无风扇桌面硬体平台，专为网路服务应用而设计，是一个适合静音环境使用的无噪音系统。它採用Intel®嵌入式IA元件，具有长期保固，支持低电压的Intel® AtomTM / Celeron® Apollo Lake-I处理器。SCB-6909支持2GB的板载DDR3L记忆体。为了提供最佳的网路性能和最佳的利用率，储存介面包括eMMC，并在后面板提供四个铜GbE接口。后面板还有两个USB 2.0接口、一个RJ-45控制台接口或微型USB控制台接口。前面板有LED指示灯，用于监控电源和储存设备的活动，以便进行本地系统管理、维护和诊断。此外，SCB-6909支持一个迷你卡插槽以便扩展。该网路系统符合RoHS、FCC和CE标准。
Processor System
CPU
Intel Celeron N3350 and Atom x5-E3930 (Apllo Lake)
BIOS
AMI® UEFI BIOS
Memory
Technology
Un-buffered and Non-ECC DDR3L 1600/1866MHz onboard memory
Capacity
Onboard 2GB
Ethernet
GbE Ethernet
4x Copper GbE ports, Intel® I211AT, PCIe x 1
LAN Bypass
1x Pair
I/O
USB
2x external USB 2.0 ports
Serial
1x RJ45 Console port (COM1)
1x micro-USB Console port (USB)
1x micro-USB Console port (USB)
Storage
SATA
2.5" SSD(Option)
eMMC
eMMC 5.1 8GB, up to 64GB
Power Supply
Watt
24W power adapter
Mechanical and Environment
Form Factor
Desktop

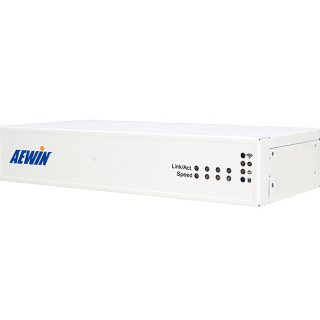

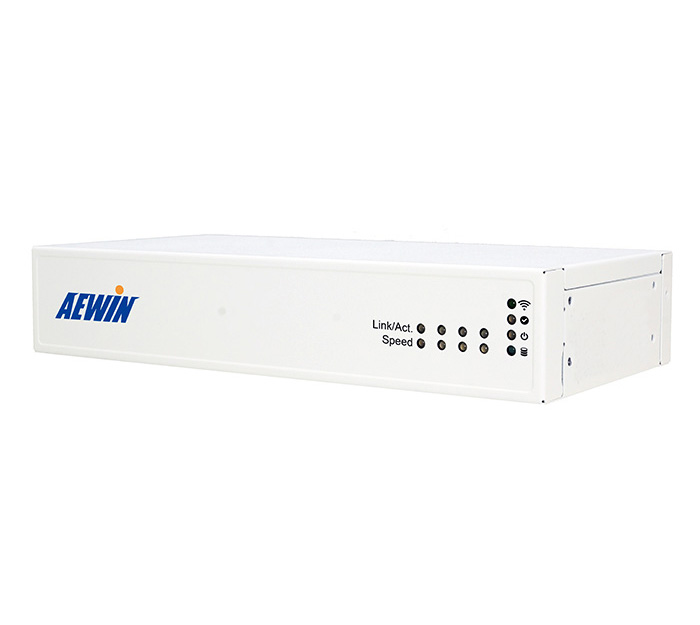

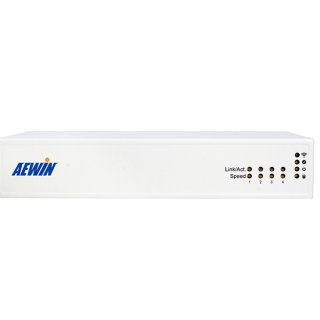

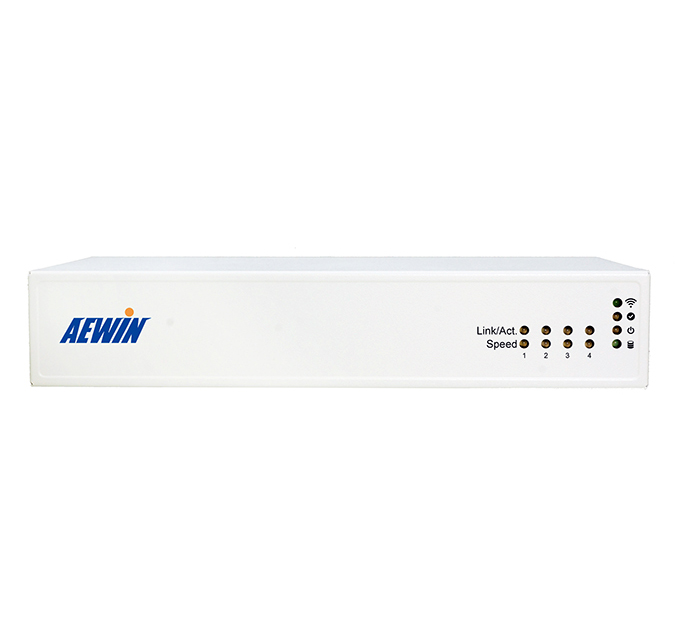

LED
WiFi LAN LED (Green)
Status/bypass (Green/Red)
One Power LED (Green/Red)
One HDD LED (Blue)
4x pairs LEDs for 4x Ethernet ports speed and Active/Link
Status/bypass (Green/Red)
One Power LED (Green/Red)
One HDD LED (Blue)
4x pairs LEDs for 4x Ethernet ports speed and Active/Link
Dimension (W x D x H)
232mm (W) x 115mm (D) x 44mm (H)
(9.1”W x 4.5” D x 1.7” H)
(9.1”W x 4.5” D x 1.7” H)
Operating Temperature
0 ~ 40°C ( 32 ~ 104°F )
Storage Temperature
-20 ~ 75°C (-4 ~ 167°F)
Humidity
10 ~ 85% relative humidity, non-operating,
non-condensing
non-condensing
Weight
2kg
Certification
CE/FCC
