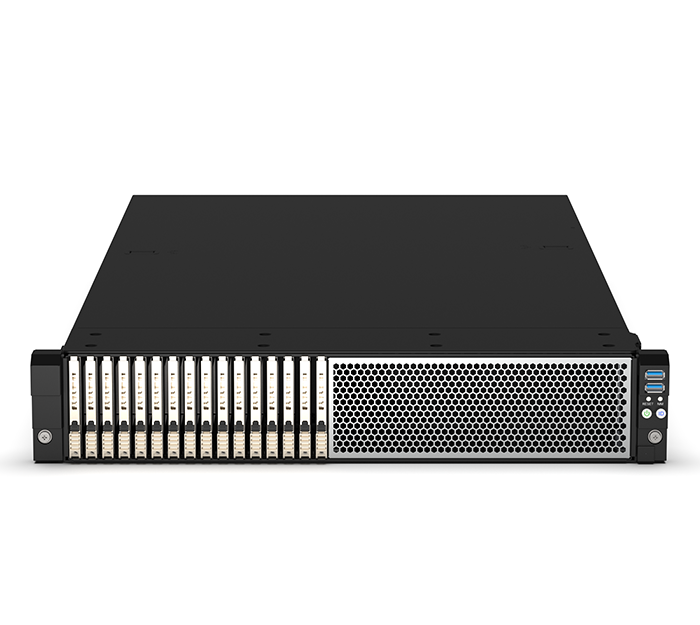

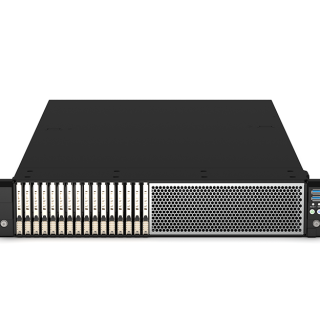

Storage Server
BS28-A10710
产品特色
Single AMD EPYC™ 9006 SP7 Server CPUs, LGA7536 socket, up to 600W
16x DDR5 RDIMMs/MRDIMMs, up to 8000/12800MT/s
16x E3.S Gen6 SSD bays, 2x M.2 2280 M Key slots
Modular DC-SCM2 form factor equipped with Aspeed AST2700 BMC
(1+1) 3200W 80+ Titanium redundant power supplies
16x DDR5 RDIMMs/MRDIMMs, up to 8000/12800MT/s
16x E3.S Gen6 SSD bays, 2x M.2 2280 M Key slots
Modular DC-SCM2 form factor equipped with Aspeed AST2700 BMC
(1+1) 3200W 80+ Titanium redundant power supplies
-
储存 -
边缘人工智慧 -
云
Built for high-density storage workloads, this server delivers ultra-large capacity and fast data access for enterprise storage, data lakes, and backup applications. It enables efficient large-scale data management, cloud storage infrastructure, and content repositories, while ensuring reliability and performance for data-intensive environments.
Form Factor
Form Factor
2U Rackmount Chassis
Dimensions (WxHxD)
438mm (W) x 87mm (H) x 830mm (D)
Processor
CPU Socket
Single-socket AMD EPYC™ “Venice SP7” (LGA7536)
CPU Support
AMD EPYC™ 9006 series Server CPUs, up to 600W
GPU Support
Max GPU Count
1x Double-Width
Interconnect
FHHL PCIe Gen6 x16 slot
System Momery
DIMM Slots
16 DIMM Slots
Type
DDR5 RDIMM/MRDIMM
Speed (MT/s)
• RDIMM up to 8000 MT/s (1DPC)
• MRDIMM up to 12800 MT/s (1DPC)
• MRDIMM up to 12800 MT/s (1DPC)
Drive Bays
Front Bays
16x Hot-Swap E3.S 1T PCIe Gen6 x4 NVMe slots
Internal Bays
2x M.2 2280 PCIe Gen4 x2 NVMe slots (OS drive)
Expanstion Slots
Default Config
1x FHHL PCIe Gen6 x16 slot
1x PCIe Gen6 x16 OCP 3.0 slot
1x PCIe Gen6 x16 OCP 3.0 slot
Input / Output
Management
1x 1000Base-T dedicated port via DCSCM
USB / Display
1x USB 3.0 (Front)
1x UART (USB form factor) (Front)
1x Mini DP (Rear)
1x UART (USB form factor) (Front)
1x Mini DP (Rear)
System Cooling
Air Cooling
High-performance heavy-duty fans with optimal speed control algorithms.
Power Supply
Configuration
(1+1) 3200W Redundant Power Supplies
Rating
80+ Titanium Efficiency
System BIOS
BIOS Type
AMI UEFI BIOS
Note
Optimized for fast boot times and extensive hardware compatibility settings.
Management
BMC
Integrated Aspeed AST2700 BMC
Protocol
IPMI 2.0, Redfish, and web-based GUI
Monitoring
Real-time monitoring of CPU/GPU temperatures, fan speeds, and system health
ROT
eRoT via AST1060
Weight
Net Weight
Approx. 55-75 kg (depending on configuration)
Operating Environment
Temperature
0°C to 35°C (32°F to 95°F)
Humidity
8% to 90% non-condensing
Note
Designed for standard enterprise data center environments.
