Key features

• Support Single Intel Celeron/Pentium/Atom Processor (Alder Lake-N or Amston Lake-C), BGA1264
• 1x DDR4 SO-DIMM memory, up to 3200 MHz
• 5x 1GbE RJ45 ports, 1x 1GbE SFP port
• 1x Expansion Module bay (PCIe x4)
• 1x 2.5" SATA, 1x mSATA, 1x eMMC 5.1

Status : available

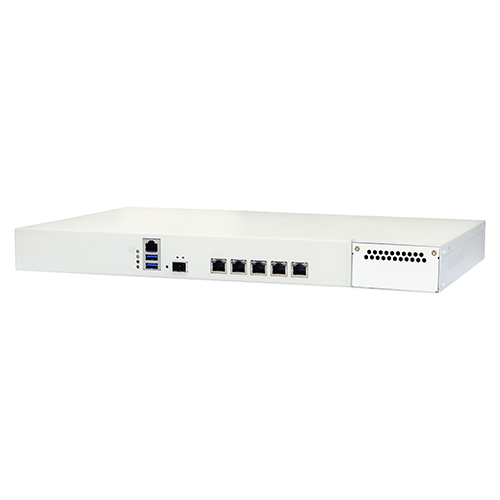

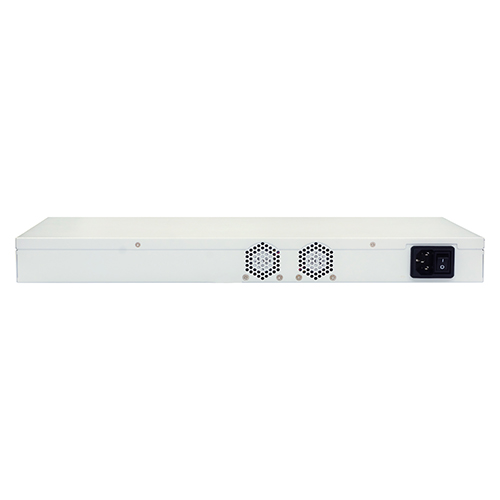

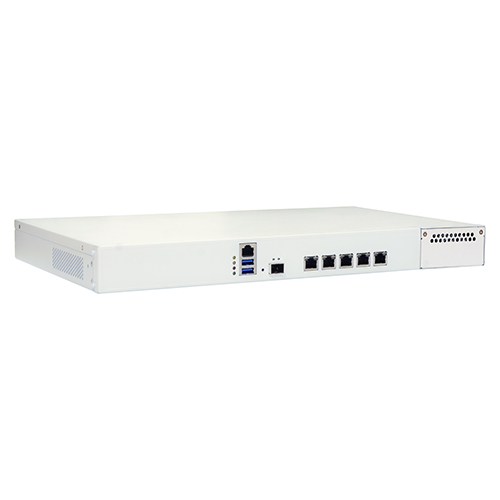

SCB-7911, powered by Intel Alder Lake N or Amston Lake-C featuring upgraded computing performance with low power consumption. SCB-7911 supports DDR4 memory with up to 16GB, 3200MHz and is designed with improved energy efficiency for networking solutions.

SCB-7911 has up to 5x 1GbE ports with 1 pair of Gen3 Bypass, 1x SFP, 1x Expansion Module bay (PCIe x4). In addition, SCB-7911 offers 2x USB 3.0, and multiple storage options (1x eMMC, 1x SATA3 2.5” SATA SSD/HDD, and 1x mSATA).

Regarding security support, it has Intel AES-NI for crypto acceleration and TPM for protected data/keys/identity. It is also with many hardware-based secure technologies for system reliability including Intel TEE (Trusted Execution Environment) for sensitive data protection, and Intel OS Guard plus Intel Boot Guard for platform integrity.
