Performance Network Appliance

AEWIN Technologies Co., Ltd.

SCB-1945

1U Rackmount Single 4th Gen AMD EPYC 8004 Series Processor(Siena) Network System, support 12 DDR5 RDIMM up to 1.152TB(96GB Per DIMM), 4x PCIe 5 x 8 slot for Network Expansion Module, 1x 2.5” Internal SATA HDD, IPMI, 2 USB 3.0, 2x 1GbE, 1x Console, mSATA, 2 x M.2 2280, BMC, Redundant PSU

Overview
Specifications
Download
Options
zoom
zoom
zoom
zoom
Key features
  • Single AMD EPYC 8004 Series SP6 Processor (Siena)
  • Support up to 1.152TB DDR5 RDIMM 4800MHz
  • 4x PCIE Gen5 x8 for Network Expansion Module for 1U
  • Support BMC/IPMI and hardware One-Key Bypass function.
Status : available

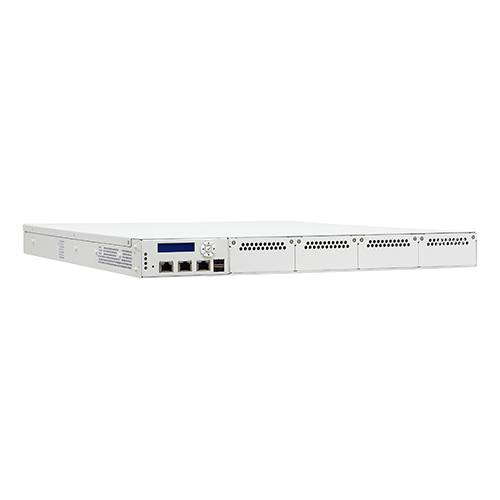

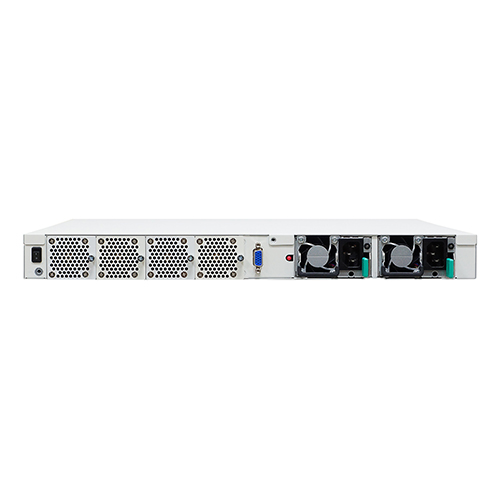

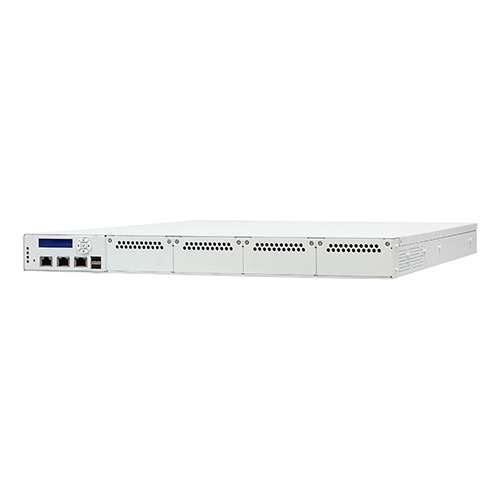

The SCB-1945 is a 1U Rack-Mount Network Appliance supporting Single AMD EPYC 8004 Series Siena Processors with breakthrough computing performance. It is with increased CPU cores up to 64 cores per EPYC 8004 processor.

The SCB-1945 supports 12x slots DDR5 RDIMM (up to 4800 MHz) and 4x PCIe Gen5 x8 slots for Network Expansion Module. Multiple different ethernet modules are available for flexible port configuration, such as 1/10/40/100 Gigabit fiber and Gigabit Copper/Fiber with or without BYPASS function. And the expansion bay can flexibly support 2x 2.5” U.2 NVMe SSD tray. SCB-1945 is an ideal computing server for Edge and AI workloads.

The strong IO elements of SCB-1945 include 2x management port (one for management, another for onboard BMC/IPMI function), a console port, 2x USB 2.0, a graphic LCD module. In addition, the SCB-1945 also supports 2x 2.5” SATA HDDs/SSDs hot-swappable, onboard mSATA/miniPCI-E, and M.2 slot for basic network storage application.

Specifications
Processor System
CPU
Support Single AMD EPYC 8004 Series Processors
System Bus
xGMI up to 32Gbp/s
BIOS
AMI® UEFI BIOS
Memory
Technology
Total 12 DIMMs (6 channels)12x DDR5 4800MHz R-DIMM slots
Capacity
RDIMM up to total 1.152TB
Expansion
Onboard Expansion Slots
1U 4x PCIe x8 slots (4x PCIe Gen5) for NIC modules
7x internal MCIO 8i connector
3x SATA Port
1x mSATA
I/O
USB
External: 2 USB2.0 at Front
Internal: 1 USB3.0 Pin Header
Serial
1x RJ45 Console port (COM1)
2x internal pin header (COM2 & COM3)
Ethernet
GbE Ethernet
2x RJ45 1GbE ports on the front panel
Storage
SATA
Support 2x 2.5” SATA HDD or SSD
mSATA
1x socket (co-layout)
M.2
2 M.2 2280 (1 for B+M key ,1 for M key )
Power Supply
Watt
1+1 CRPS 800W AC/DC Redundant power supply
Mechanical and Environment
Form Factor
1U Rackmount
LED
1x Power LED (Green)
1x HDD LED (Red)
2x Status LED (Green/Yellow via programmable GPIO)
Dimension (W x D x H)
438mm(W) x 548 mm(D) x 44mm(H)
Operating Temperature
0 ~ 40°C
Storage Temperature
-20 ~ 75°C
Humidity
5 ~ 95% relative humidity, non-operating,
non-condensing
Weight
TBD kg
Certification
CE/FCC
Packing List
1x SCB-1945 unit
2x power cord
1x CD (Manual, Quick Installation Guide, Utilities & Drivers)
Download
Datasheet
2019-09-03
1
Windows10
download_icon
Optional
Optional
SCB-1945A
1U Rack-Mount, single AMD EPYC 8004 Siena SP6 processor, 12xDDR5,4x PCIe x8 slot for NIC, 1x PCIe x16 slot for rear add-on card, Console, USB2.0, USB 3.0, 2 GbE, 2x 2.5” HDD, mSATA, mini-PCIe, 2x M.2 2280
R642
I/O Card with Console, LAN,USB,4xLEDs
BP013
Backplane with Active LED and Fault LED support 2 2.5”SATA tray
BP014
CRPS Power Distribution Board
RS090
Riser Card with 2 MCIO 8i to 1 PCIe 16 Slot for standard PCIe Card
BP020
HDD Backplane with 1 MCIO 8i to 2 NVME CONN (SFF-8639)
