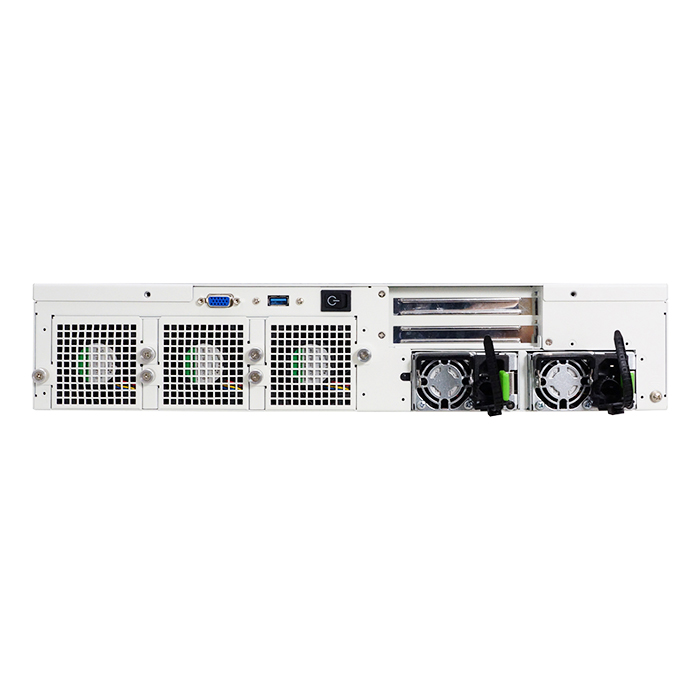

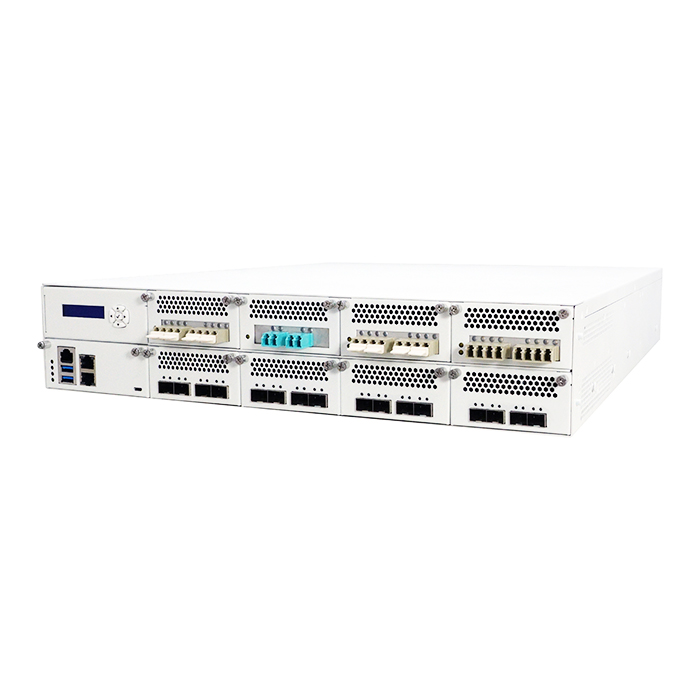

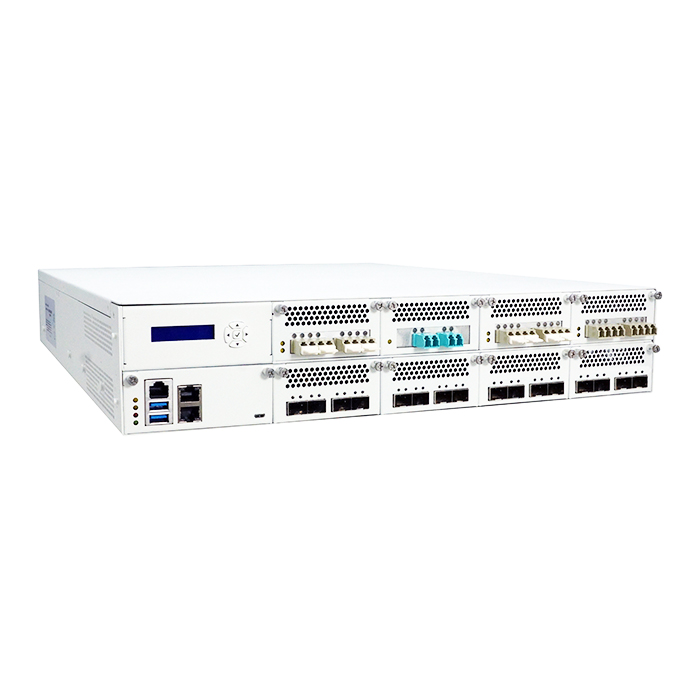

SCB-1923A

2U Rack-Mount Network Appliances, Single 2nd Gen Intel Xeon Scalable processor with C621 PCH, DDR4, 8x PCIe x8 slot for NIC, Console, USB2.0, USB 3.0, 2 GbE, 2x 2.5” HDD, CF/ m-SATA, 2 M.2 2280,2x USB 3.0, 2x GbE, Console, CF, mSATA, M.2, PCIe x8 slot, Redundant PSU

Overview
Specifications
Download
Options
zoom
zoom
zoom
zoom
Key features
  • 2nd Gen Intel Xeon Scalable Processor, LGA3647
  • Six-channel DDR4 ECC/Registered 2400/2666 MHz Memory, Up to 32GB per DIMM, max support 384GB.
  • 8 x PCIe x8 slots for expansion LAN modules, up to 96 GbE Copper / Fiber ports
  • Support Hot-Swappable FAN module
  • Support 100GbE LAN modules (Option)
  • 2x standard PCIe x8 add-on card (Option)
  • Support IPMI card with VGA (Option)
  • 2x 2.5” HDD/SSD hot-plugging (Option)
Status : available

2U Rack-Mount, Single 2nd Gen Intel Xeon Scalable processor with C621 PCH, DDR4, 8 PCIe x8 slot for NIC, Console, USB2.0, USB 3.0, 2 GbE, 2x 2.5” HDD, CF/ m-SATA, 2 M.2 2280,2x USB 3.0, 2x GbE, Console, CF, mSATA, M.2, PCIe x16 slot, Redundant PSU

Specifications
Processor System
CPU
Single 2nd Gen Intel Xeon Scalable processors
Chipset
Intel® C621 PCH
System Bus
UPI up to 10.4 GT/s
BIOS
AMI® UEFI BIOS
Memory
Technology
6x channels, 2x DIMM per channel
ECC & Registered：DDR4 2133/2400/2666 MHz memory,up to 32GB per DIMM
LRDIMM：DDR4 2133/2400/2666 MHz,up to 32GBper DIMM
Capacity
RDIMM：up to 384GB
LRDIMM：up to 384GB
Expansion
Onboard Expansion Slots
8x PCIe x8 slots for NIC module
1x PCIe x4 slot for riser card (Option)
I/O
USB
2x external USB 3.0 ports
2x internal USB 3.0 pin header
Serial
1x RJ45 Console port (COM1)
1x internal 5x2 pin header (COM2)
Ethernet
GbE Ethernet
2x RJ45 GbE ports (1x IMPI, 1x MGMT)
Storage
SATA
Support 4x 2.5” SATA HDD or SSD
CompactFlash Socket
1x CompactFlashTM Type II
Power Supply
Watt
2U Redu nda nt 550W CRPS Power Supply
Mechanical and Environment
Form Factor
2U rack-mount
LED
1x Power LED (Green)
1x HDD LED (Red)
2x Status LED
(Green/Yellow via programmable GPIO)
Dimension (W x D x H)
440mm (W) x 548mm (D) x 88mm (H)
(17.2”W x 21.5”D x 3.5”H)
Operating Temperature
Operating: 0 ~ 40°C ( 32 ~ 104°F )
Storage Temperature
-20 ~ 75°C (-4 ~ 167°F)
Humidity
10 ~ 85% relative humidity, non-operating,
non-condensing
Weight
16 kg
Certification
CE/FCC
