Edge Computing Server

AEWIN Technologies Co., Ltd.

SCB-1921

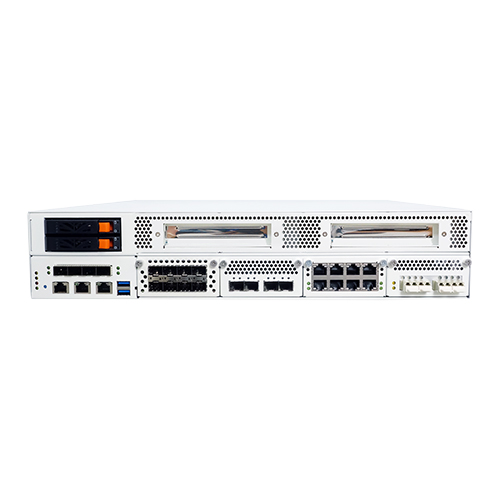

2U Rack-Mount Edge Computing Server featuring Dual 2nd Gen Intel Xeon Scalable Processors with Intel C620 series PCH. Supporting DDR4 memory up to 2933MHz, 4x half-heigh PCIe x8 (for 4x T4) or 2x full-height PCIe x16 front access expansion slots, 4x PCIe x8 Network Expansion Module, 2x 2.5” SATA HDD/SSD with Hot-Plugging, IPMI, 2x USB 3.0, 2x 1GbE, 1x Console, 1x CF, 1x mSATA, 1x M.2, Redundant PSU

Overview
Specifications
Download
Options
zoom
zoom
Key features
  • Support Dual 2nd Gen Intel Xeon Scalable Processors
  • Support 2933MHz System Memory
  • 4x PCIe x8 for Network Expansion Module, plus 4x PCIe x8 or 2x PCIe x16 for GPU or FPGA
Status : available

The SCB-1921 is a 2U Rack-Mount high-performance edge computing system, supporting 2x 2nd Gen Intel Xeon Scalable Processors including Skylake & Cascade Lake Processors with Intel® C624 PCH (codenamed Lewisburg). The new generation platform provides high performance with CPU up to 28 cores, AVX-512 instructions, and Ultra Path Interconnect (UPI) up to 10.4 GT/s.

The SCB-1921 supports total 12 channels DDR4 RDIMM (up to 2933MHz). With 64 PCI Express lanes, up to 4x NVIDIA T4 or other HHHL expansion cards can be installed or optionally 2x full-height PCIe x16 slots.

The strong IO elements of SCB-1921 include two management Ethernet port (one for management, another for option IPMI function), a console port, 2x USB 3.0 ports, LEDs for power/ HDD/ 2x GPO. In addition, the SCB-1921 also supports 2x 2.5” SATA HDD/SSD with Hot-Plugging and onboard CompactFlashTM/ m-SATA/ M.2 slot for basic network storage application.

Specifications
Processor System
CPU
Dual 2nd Gen Intel Xeon Scalable Processors, Socket P, LGA3647
Chipset
Intel C624 PCH
System Bus
UPI up to 10.4 GT/s
BIOS
AMI® UEFI BIOS
Memory
Technology
Total 24 DIMMs(6x channels per CPU, 2x DIMMper channel,12x DIMMs per CPU)
1.ECC & Registered：DDR4 2666/2933MHz memory,up to 32GB per DIMM
2.LRDIMM：DDR4 2666/2933MHz,up to 32GB per DIMM
Capacity
RDIMM/LRDIMM：up to 768GB
Expansion
Expansion Slots
1x SO-DIMM slot for IPMI card with VGA support
4x PCIe(x8) slots for NIC module
4x half-heigh PCIe x8 (for 4x T4) or 2x full-height PCIe x16
1x PCIe(x8) slot for Standard PCIe card
Ethernet
GbE Ethernet
2x 1GbE RJ45 ports
I/O
USB
2x external USB 3.0 port
1x internal USB 3.0 pin header
Serial
1x RJ45 Console port (COM1)
1x internal 5x2 pin header (COM2)
Storage
SATA
Support 1x 3.5” or 2x 2.5” SATA HDD or solid state drives
1x mSATA socket
mSATA
1x mSATA socket
CompactFlash Socket
1x CompactFlashTM Type II (Optional)
M.2
1x M.2 2280 socket
Power Supply
Watt
Redundant 800W Power Supply
Mechanical and Environment
Form Factor
2U rack-mount
LED
1x Power LED (Green)
1x HDD LED (Red)
1x Status LED(Green/Yellow via programmable GPIO)
Dimension (W x D x H)
440mm (W) x 710mm (D) x 88mm (H)
(17.3”W x 27.9”D x 3.4”H)
Operating Temperature
Operating: -5 ~ 50°C ( 23 ~ 122°F )
Storage Temperature
-45 ~ 75°C (-49 ~ 167°F)
Humidity
5 ~ 95% relative humidity, non-operating,
non-condensing
Weight
25kg/55.1 lbs
Certification
CE/FCC
Download
Datasheet
2019-09-03
1
Windows10
download_icon 441 KB
Optional
Optional
R384B
Expansion module with 8 SFP GbE ports, Intel i350-AM4
R385B
Expansion module with 8 RJ45 GbE ports, two pairs Gen 3 bypass, Intel I350-AM4
R386A
Expansion module with 4 SFP+ 10 GbE ports, Intel XL710-BM1 w/o re-driver
R387A
Expansion module with 2 QSFP+ 40 GbE ports, Intel XL710-BM2 w/o re-driver
R479A
Expansion module with 4 SFP+ 10G ports, Intel 82599ES
R492A
IPMI Card with VGA for SCB-1925, ASPEED AST2500
R492B
VGA Card for SCB-1925, ASPEED AST2510
R509A
Expansion module with 2 ZSFP+ 25GbE ports, Intel XXV710
