Key features

• Support Intel® Xeon E5-2600 v3/v4 (Haswell/Broadwell-EP) Series processor, LGA 2011-3
• Eight-channel DDR4 Registered 2133/2400 MHz memory, max support 512GB
• Max support 8 x PCIex8 slots for expansion LAN module, up to 64 GbE Copper / Fiber ports
• 2 x 2.5" HDD/ SSD swappable
• Support IPMI card with VGA (option)
• Support 2U ATX Redundant Power Supply

Status : available

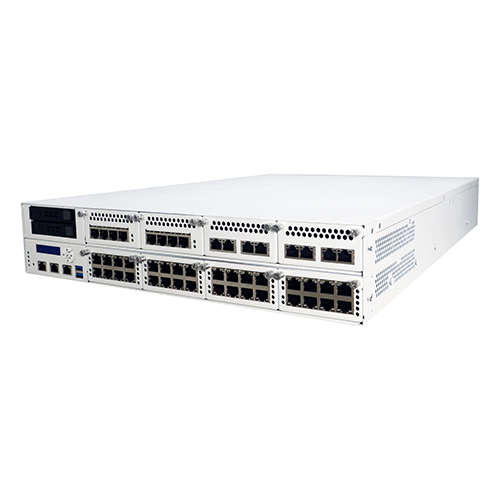

The SCB-1912A is 2U Rack-Mount high-performance networking system for fit all networking solutions by using New Intel® micro-architecture Haswell /Broadwell-EP platform with efficient performance processor Xeon® E5-2600 V3/V4 family and the Intel® C612 series chipset (codenamed Wellsburg).The new generation platform provides highly performance, CPU cores up to 22 cores, supporting 55MB cache and total with 40 PCIe lanes.

The SCB-1912A is enhancement in computing performance, system responsiveness with Intel® E5-2600 V3/V4 series processor, supporting sixteen DDR4 ECC Register DIMM (up to 2400 MHz ) and maximum memory capacity is up to 512 GB. With 80 PCIe Express lanes, the SCB-1912A can support up to 8 NIC modules, supporting multiple Ethernet module bays for flexible port configuration; such as 1/10/40/Gigabit fiber, Gigabit copper with BYPASS function or not and Gigabit fiber ports. The maximum capable Ethernet port is up to 64 GbE ports.

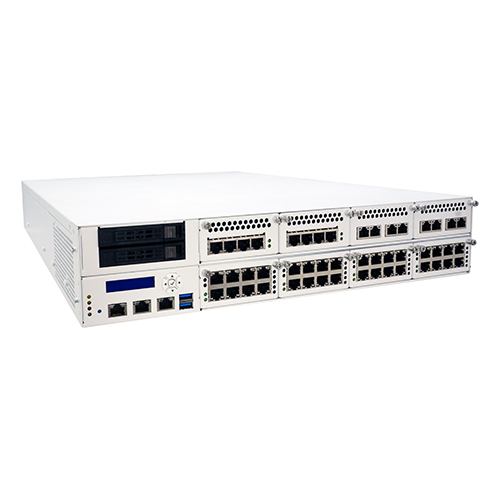

The strong IO elements of SCB-1912A include two management Ethernet ports (one for management, another for option IPMI function), a console port, two USB ports, a Graph LCD module with keypad (5 key), LEDs for power/ HDD/ 2x GPO. In addition, the SCB-1912A also supports two front-swappable 2.5” SATA HDDs/SSDs and onboard Compact Flash /m-SATA /M.2 2280 slot for basic network storage application.
