Key features

• Support Intel® 6th Core i7/i5/i3 (Skylake-S) processor, LGA 1151
• Two-channel DDR4 2133 MHz un-buffered / Non-ECC memory, max support 32GB
• Max support 14 GbE Copper ports with 6 pairs BYPASS
• Flexible PCIe port configuration, either 1 standard PCIe x8 card or 1 PCIe x8 slot for Ethernet module
• PCIex8 slot for multiple expansion modules, 4 / 8 GbE Copper, 4 / 8 GbE Fiber, 2 / 4 10GbE Fiber, 2 40GbE Fiber
• 2.5” SATA3.0 HDD / SSD

Status : available

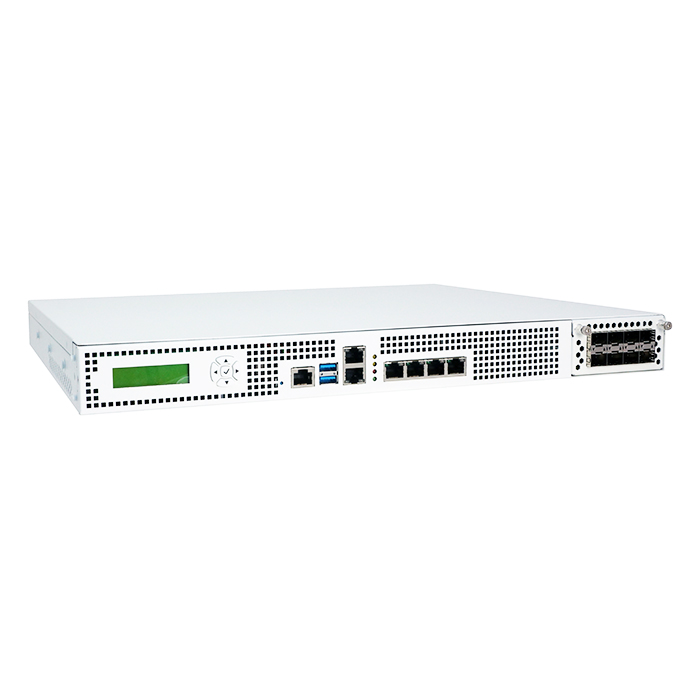

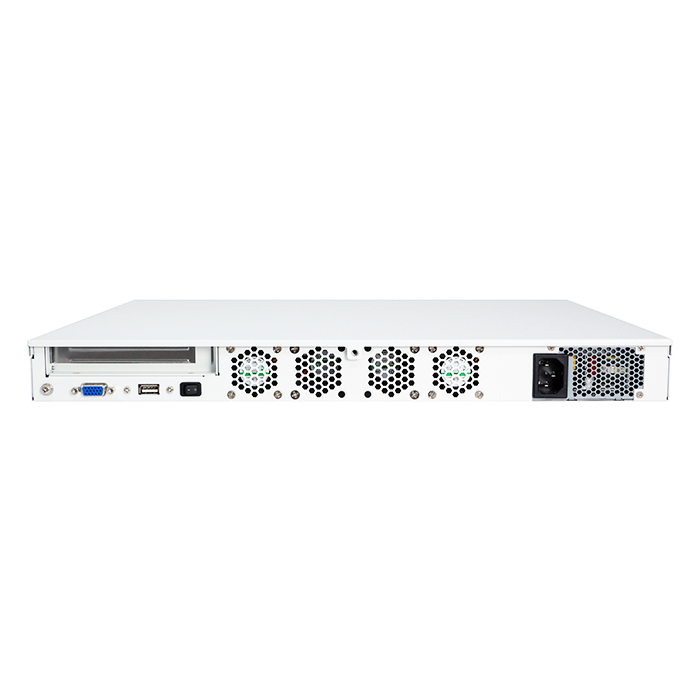

The SCB-1710 is 1U Rack-Mount networking system for fit all networking solutions by using New Intel® 14nm micro-architecture Skylake-S series 6th Core i7/i5/i3 processor and the Intel® H110 PCH. With the next generation 3-D tri-gate design, the adoption of the 6th generation Intel® Core™ processor comes with the promise to enhance processor performance, while lowering the TDP. A new socket type, LGA 1151, has also been released for the die-shrinking architecture. The SCB-1710 platform supports two DDR4 2133 MHz un-buffered / Non-ECC DIMM and maximum memory capacity is up to 32 GB. The powerful storage interface support 2.5” SATA 3.0 HDD/SSD and 1 m-SATA slot for basic network storage application. The SCB-1710 supports flexible PCIe port configuration, either 1 standard PCIe x8 card or 1 PCIe x8 slot for expansion module. Multiple expansion modules support for 4 / 8 GbE Copper, 4 / 8 GbE Fiber, 2 / 4 10GbE Fiber, 2 40GbE Fiber and the maximum 14 GbE Copper ports support with 6 pairs BYPASS function. The strong IO elements of SCB-1710 support one console port, two USB 3.0 ports, a LCD module with keypad, LEDs for BYPASS / Status / HDD / Power
