Performance Network Appliance

AEWIN Technologies Co., Ltd.

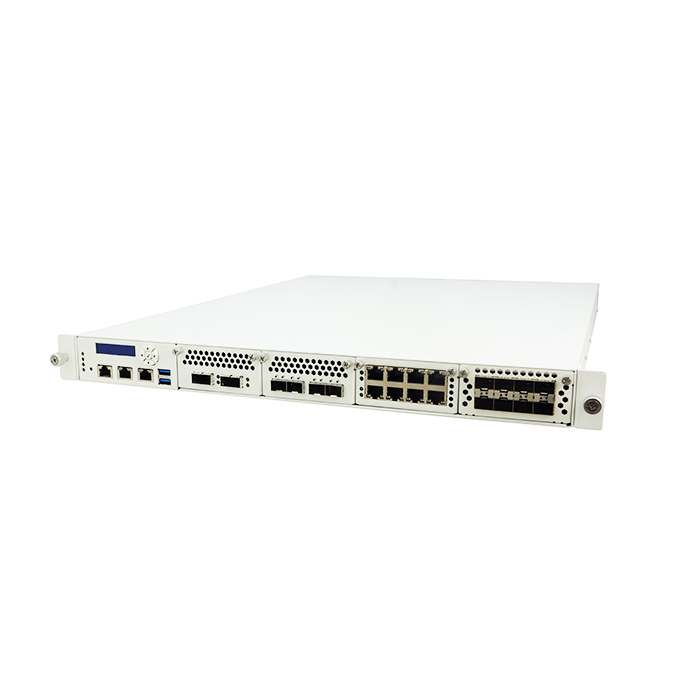

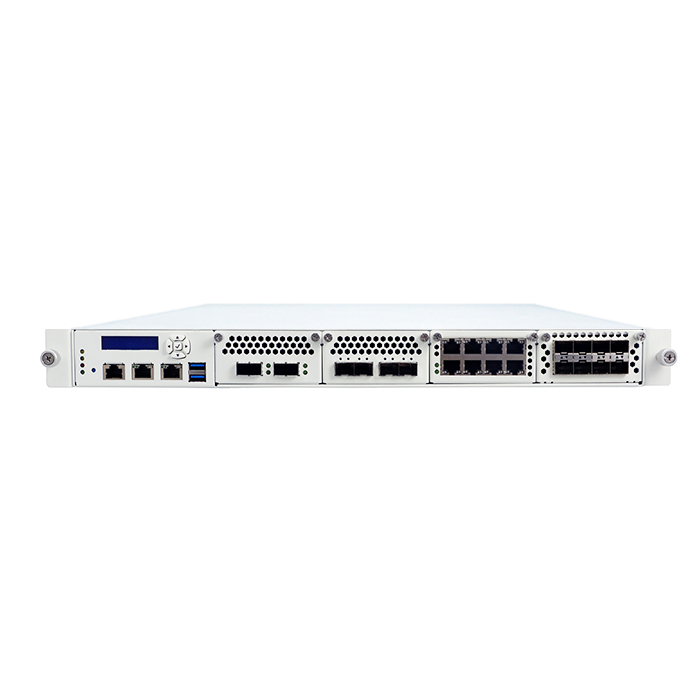

SCB-1931

1U Rackmount Single 3rd Gen Intel Xeon Scalable Processor (Ice Lake-SP) and Intel® C621A PCH Network Appliance, support DDR4 RDIMM up to 512 GB, 4x PCIe Gen4 x8 slot for Network Expansion Module, 1x 2.5” SATA HDD hot-swappable, IPMI, USB 3.0, 2x 1GbE, 1x Console, CF/mSATA/miniPCI-E, M.2, Redundant 550W PSU

Overview
Specifications
Download
Options
zoom
zoom
zoom
Key features
  • Support Single 3rd Gen Intel® Xeon® Scalable Processors, LGA4189
  • Support up to 3TB DDR4 RDIMM/LRDIMM 3200MHz & Intel® Optane Persistent Memory 200 series
  • Support Intel QAT (by SKU)
  • 2x RJ45 1GbE ports, 4x PCIe Gen4 Expansion Module bays 2x 2.5” SATA, 2x M.2 2280, 1x mSATA
  • IPMI v2.0, Intel PFR / AEWIN TSB module
Status : available

The SCB-1931 is a 1U Rack-Mount hardware networking system. Supporting Intel® Whitley/Ice Lake-SP with efficient performance processor Xeon® scalable series and Intel® C621A PCH (codenamed Lewisburg). The new generation platform provides higher performance and increased CPU cores up to 40 cores. The SCB-1931 supports 8x channels DDR4 RDIMM/LRDIMM (up to 3200 MHz) and Intel Optane PMem to have Max. capacity of 3TB. With 64 PCI Express lanes per CPU, the SCB-1931 can support up to 4x Network Expansion Modules. Multiple different ethernet modules are available for flexible port configuration, such as 1/10/40/100 Gigabit fiber and Gigabit Copper/Fiber with or without BYPASS function.

The strong IO elements of SCB-1931 include two management port (one for management, another for option IPMI function), a console port, USB ports, LEDs for power/ HDD/ 2x GPIO. In addition, the SCB-1931 also supports one 2.5” SATA HDD/SSD and onboard Compact Flash™/m-SATA/miniPCI-E, M.2 slot for network storage application.

Specifications
Processor System
CPU
Support single 3rd Gen Intel Xeon Scalable Processor(Ice Lake-SP), Socket P+, LGA4189
Chipset
Intel® Lewisburg C621A PCH (by SKUs)
BIOS
AMI® UEFI BIOS
Memory
Technology
Total 8 DIMMs (8 channels per CPU, 1x DIMM per channel, 8 DIMMs per CPU)
--DDR4 RDIMM/LRDIMM up to 3200 MHz, up to 256GB per DIMM
--Intel® Optane™ DC Persistent Memory (DCPMM) 200 Series module, up to 512GB per DIMM
Capacity
RDIMM/ LRDIMM + DCPMM up to total 3TB
Expansion
Onboard Expansion Slots
- 4x PCIe Gen4 x8 slots for Network Expansion Module
- 2x M.2, one CF/mSATA/miniPCI-E,
- 2x internal SlimSAS 4i connector
- 1x rear PCIe x8 slot for Standard PCIe card (Optional)
I/O
USB
2x external USB 2.0 port
1x internal USB 3.0 pin header
Serial
1x RJ45 Console port (COM1)
2x internal pin header (COM2 & COM3)
Ethernet
GbE Ethernet
2x RJ45 1GbE ports in system front
Storage
SATA
Support 1x 2.5” SATA HDD or SSD
M.2
2x M.2 2280 socket (M-Key)
Compact Flash Socket
Either for CompactFlash/mSATA/miniPCI-E (Co-Layout)
Power Supply
Watt
550W Redundant power supply (CRPS), 12V output / RoHS
Mechanical and Environment
Form Factor
1U Rackmount
LED
1x Power LED (Green)
1x HDD LED (Red)
2x Status LED (Green/Yellow via programmable GPIO)
Dimension (W x D x H)
438mm(W) x 548 mm(D) x 44mm(H)
Operating Temperature
0 ~ 40°C
Storage Temperature
-20 ~ 75°C
Humidity
5 ~ 95% relative humidity, non-operating,
non-condensing
Weight
10 kg
Certification
CE/FCC
Packing List
1x SCB-1931 unit
2x power cord
