General Purpose Server

AEWIN Technologies Co., Ltd.

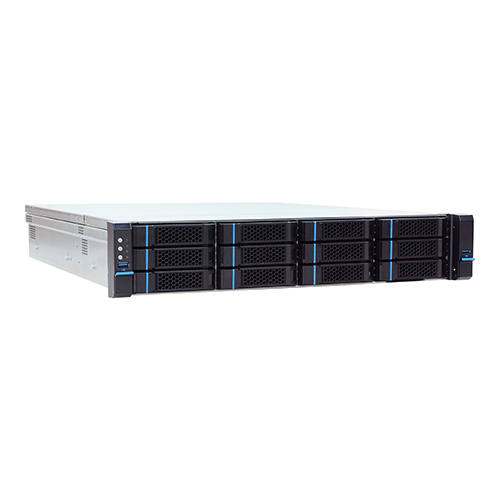

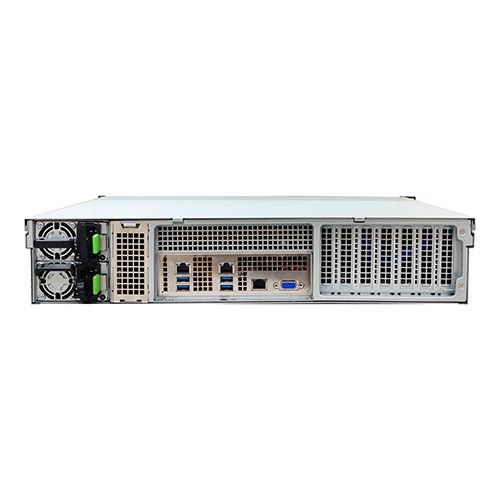

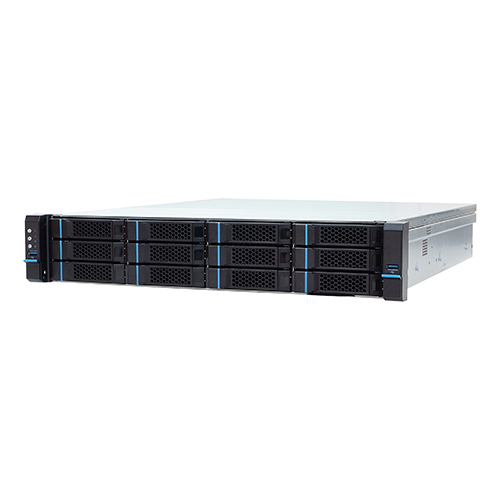

BIS-5102

2U rack-mount General Purpose Server with single 3rd Intel® Xeon® Scalable Processors(Ice Lake-SP) and Intel® PCH C621A workstation, support 8x DDR4 RDIMM (up to 3200MHz), 12 bays 3.5” Hot-Swap SAS/SATA HDD, IPMI, USB 3.0/2.0, 2x 1GbE, 1x Console, 2x M.2, Redundant PSU

Overview
Specifications
Download
Options
zoom
zoom
zoom
zoom
Key features
  • 2U Rack-mountable General Purpose Server
  • Single 3rd Gen Intel® Xeon® Scalable Processors up to 205W TDP
  • 8x DDR4 RDIMM/LRDIMM Memory slots
  • Support 5x PCIe HHHL PCIe card
  • Up to 2x 80PLUS Platinum Certified 550W CRPS
Status : available

BIS-5102 is a 2U rack-mount General Purpose Server with single 3rd Gen Intel® Xeon® Scalable Processor based on the Ice Lake-SP platform. This new generation of Xeon processors brings significant improvement in core count and IPC, elevating the overall performance to a new level. With total of 64x PCIe Gen4 lanes, it offers enough bandwidth for any PCIe based accelerators. BIS-5102 is designed to accommodate 2x PCIe Gen4 x16, plus 3x more with PCIe Gen4 x8 slots. This allows the BIS-5102 to flexibly support various add-on card configuration. With on-board BMC, you can enjoy the ease of management of server class hardware. Redundant CRPS power supplies ensure the highest availability available for this server.

Specifications
Server System
Processor
Support single 3rd Gen Intel® Xeon® Scalable Processor (Ice Lake-SP)
Chipset
Intel® C621A
BIOS
AMI 64Mb SPI BIOS
Memory
Technology
Total 8x RDIMMs (8x memory channels)
ECC & Registered DDR4 2666/2933/3200MHz memory
Capacity
Validated up to 256GB
(with 32GB 3200MHz RDIMMs)
Ethernet
GbE Ethernet
2x 1GbE RJ45 ports + 1x MGMT/IPMI port
Expansion
Expansion slot
2x PCIe Gen4 x16 slots
3x PCIe Gen4 x8 slots
Storage
SATA storage
12x 3.5” Hot-Swap SAS/SATA Bays
M.2
2x M.2 (2280 M-key) PCIe Gen3 x2
I/O
USB
2x USB 3.0 (Front I/O)
1x USB 3.0 (Rear I/O)
Serial
1x RJ45 Console port (COM 1)
1x VGA port
Power Supply
Watt
Redundant 550W CRPS
Mechanical and Environment
Form Factor
4.5U Rack-mountable Desktop Workstation
LED
1x Power Button/LED
1x Reset Button
1x HDD LED
1x ID Button/LED
Dimension
438mm (W) x 558mm (D) x 87mm (H)
Operating Temperature
0 ~ 40°C
Storage Temperature
0 ~ 75°C
Humidity
10 ~ 85% relative humidity, non-operating,non-condensing
Certification
CE/FCC
