Edge Computing Server

AEWIN Technologies Co., Ltd.

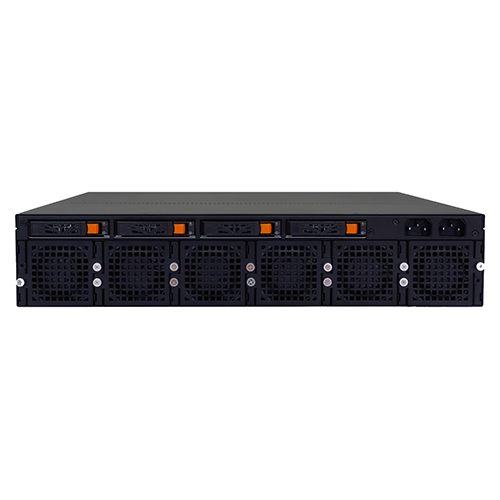

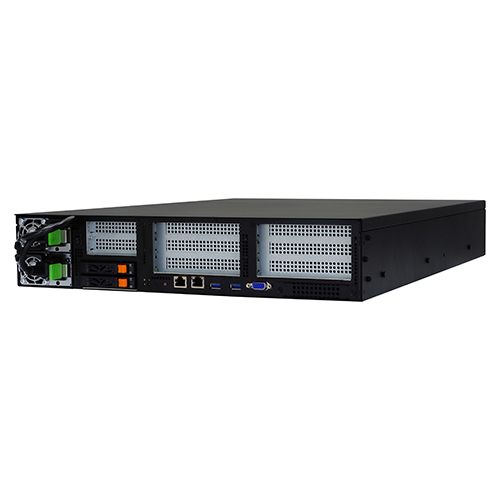

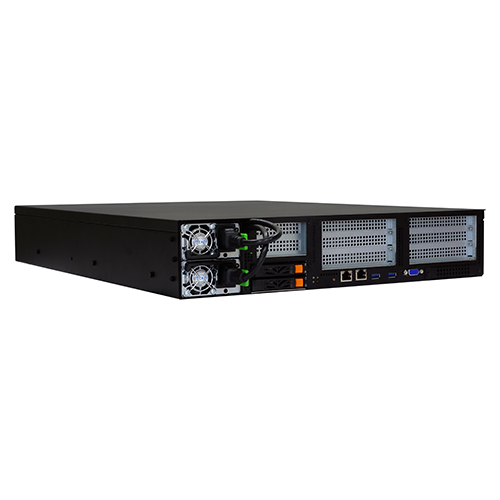

BAS-6101A

BAS-6101A is a 2U edge computing server with single AMD Bergamo/Genoa processor, 24x DDR5 slots, 8x PCIe slots & 1x OCP3.0 slot for different add-on cards and 6x pluggable 2.5” HDDs.

Overview
Specifications
Download
Options
zoom
zoom
zoom
zoom
Key features
  • Support most advanced AMD Bergamo/Genoa platform.
  • Support 24x DDR5 RDIMMs & 3DS RDIMMs.
  • Support 8x PCIe slots (e.g. GPU cards for AI applications) and 1x OCP3.0 slot for LAN port expansion.
  • Support 1x RJ45 GbE for IPMI (ASPEED 2600).
  • Support 6x SATA/NVMe SSD. Customers can use RAID card to enhance SSD performance and reliability.
Status : available

BAS-6101A is a 2U edge server. It supports the most advanced AMD Bergamo/Genoa processor, 24x DDR5 slots, 6x SATA/NVMe SSD, 8x PCIe slots & 1x OCP slot. It also supports IPMI function to simplify local/remote management. AEWIN develop BAS-6101A for edge server or GPU server to match AI or Telcom customers requirement. Customers can install different add-on cards (e.g. GPU/AI card, QAT card, encryption card, smart NIC or accelerator card) to satisfy their biz needs.

Specifications
Processor System
CPU
AMD SP5 Genoa/Bergamo
Chipset
SOC Integrated
BIOS
AMI UEFI BIOS
Memory
Technology
Up to 24x DDR5 RDIMM
Capacity
Up to 2.2TB (24Gb 96GB, non 3DS),
Up to 12TB (3DS, to be validated by request)
Expansion
Onboard Expansion Slots
-Up to 2x dual width FHFL PCIe Gen5 x16 + Up to 2x single width FHHL PCIe Gen5 x16
or up to 4x single width FHFL PCIe Gen5 x16 + up to 2x single width FHHL PCIe Gen5 x16
-Up to 2x HHHL PCIe Gen4 x8
-1x OCP3.0 SFF Gen5 x16
I/O
USB
2x USB3.0 connector
1x USB3.0 + 1x USB2.0 internal pin header
Serial
COM1: 1x RJ45 Console
COM2 &3 pin header
Display
1x VGA
Ethernet
GbE Ethernet
1x 1Gb/s RJ45 IPMI management port through AST2600 BMC
Storage
SATA
Up to 6x Hot Swap NVMe 2.5” or up to 6x Hot Swap SATA 2.5”
M.2
2x M.2 2280/ 22110 M key
Power Supply
Watt
CRPS Redundant 1600W
Mechanical and Environment
Form Factor
2U Rackmount Edge Computing Server
LED
1x UID Button/LED (Blue)
1x Status LED (Red/Green)
1x Power LED (Green)
1x GPIO LED (Defined by customer)
1x Reset Button
Dimension (W x D x H)
438mm(W) x 600mm(D) x 88 mm(H)
Operating Temperature
Operating: 0 ~ 40°C ( 32 ~ 104°F )
Storage Temperature
-20 ~ 75°C (-4 ~ 167°F)
Humidity
5 ~ 95% relative humidity, non-operating,
non-condensing
Weight
TBD
Certification
CE/FCC
Packing List
1x BAS-6101A
2x power cord
Download
Datasheet
2023-08-31
1
Windows10
download_icon 574 KB
Optional
Optional
OT018A
Expansion module for OCP 3.0 SFF NIC with QAT and 4 RJ45 1GbE ports, Intel C627 PCH + Marvell 88E1543 PHY
OT020A
Expansion module for Standard PCIe x16 FHHL QAT card with 1 QSFP28 100G + 2 SFP+ 10G + 2 RJ45 1GbE LAN ports, Intel E810-CAM1 + Intel C627 PCH + Marvell 88E1512 PHY
